User Manual

OVERVIEW

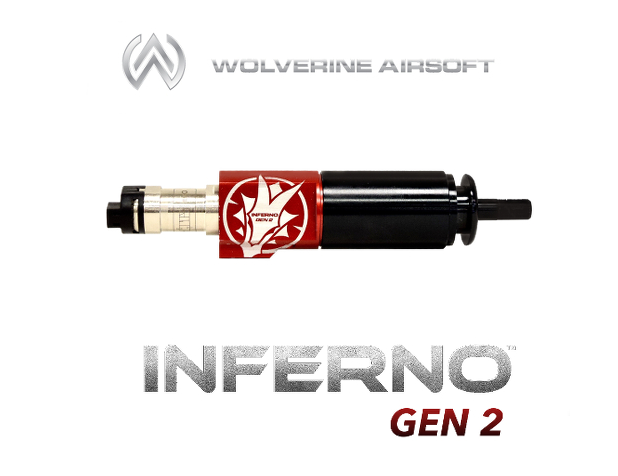

The INFERNO Gen 2 features a revolutionary single solenoid, independent poppet and nozzle design that sets a new standard for a drop in kit. Particularly, it is designed to solve the “open bolt problem.” It is a hybrid design which keeps the advantages of an open bolt system: easy tuning, no first round dry fire, efficiency, etc… and adds the simplicity of easier hop up tuning that closed bolt systems have traditionally offered. In addition, it further improves the efficiency over our previous systems by an estimated 10-15%.

Our kits include choice of our Spartan Electronics board or Gen 2 Premium FCU and everything you need to install the INFERNO Gen 2 in your gun platform.

COMPATIBILITY

Guns

• V2 Gearboxes
  • M4 platforms, ICS split gearboxes, V2.5 gearboxes

• V3 Gearboxes
  • AK, AUG, G36, etc.…
• M249 Gearboxes
  • STONER, SAW, Support Weapons, etc.…

Stocks

• WRAITH: CO2 Stock
• QUAKE: Recoil Stock
• All standard stocks

Regulators

• STORM: OnTank
• STORM: InGrip (M4 only)
• All standard airsoft regulators

Electronics

• Spartan Electronics (V2 only)
• Premium FCU
• Bluetooth FCU
• other HPA FCUs

Features

• Patented independent poppet and nozzle design
• Hybrid design allows pause between BB loading and BB firing
• Improves hop up performance with a wide range of stock and aftermarket options
• Still uses Wolverine Airsoft’s patented Imbalanced Poppet
• Backwards compatible with all Wolverine Airsoft electronics.
• Still uses bullet-proof direct solenoid fired design
• NO ADDITIONAL CRITICAL O-RINGS–> No negative impact on reliability!
• Estimated 10-15% efficiency improvement
• Integrated Filtered Line

Specs

• Input Pressure: 60-140PSI  (Use with STORM Regulator for best performance!)
• Output Energy: 1-3J Adjustable (build dependent)
• ROF: 5-35RPS Adjustable
• Battery Input: JST 6-8V
• Dwell: Fully Adjustable
• Electronics: Compatible with all Wolverine Airsoft Electronics
• For more information, see the Owner’s Manual

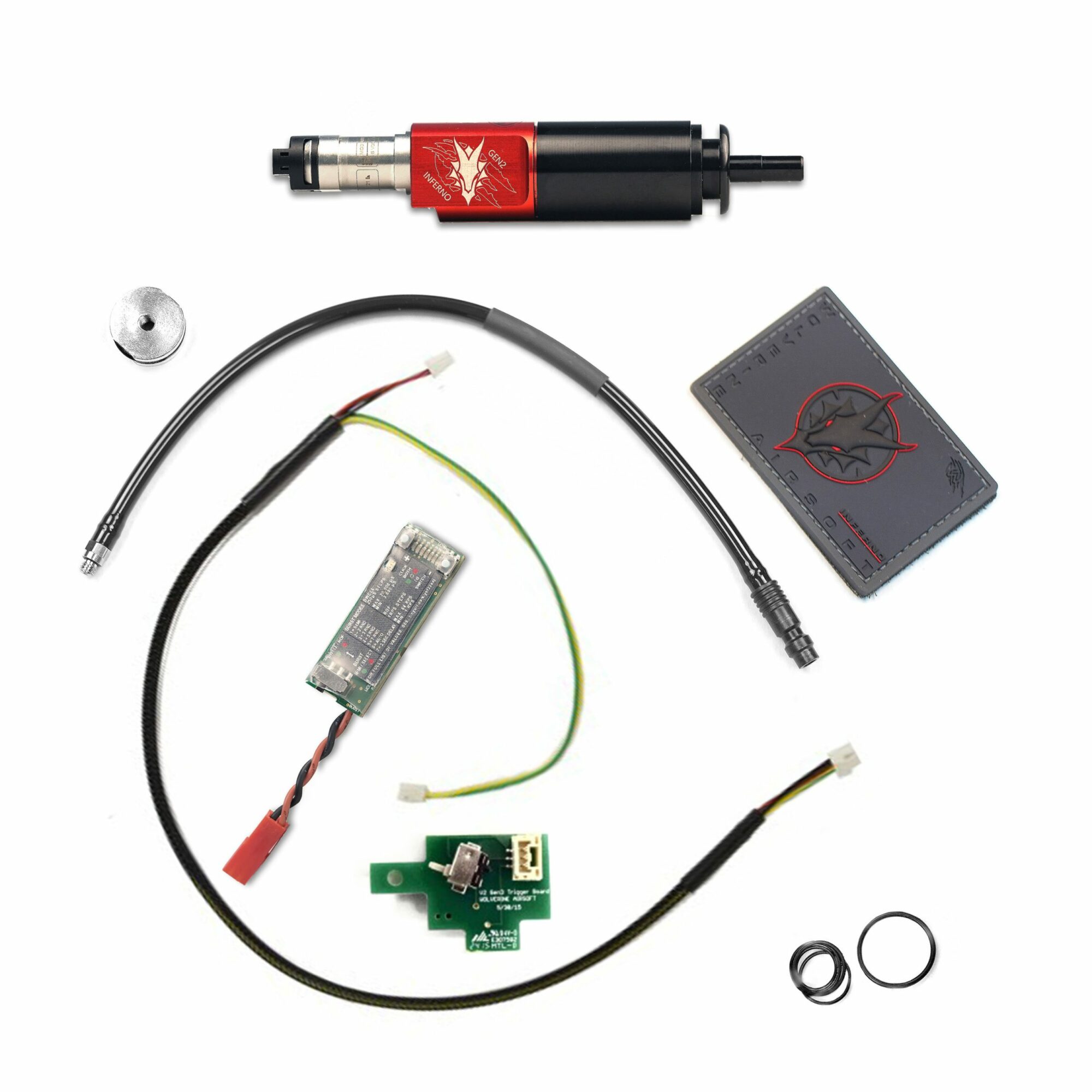

Kits Include

• INFERNO HPA Engine
• Grip Line with Integrated Filter
• O-Ring Kit
• 3″ x 2″ INFERNO Patch
• Spartan Kit
  • Spartan electronics
  • Buffer tube adapter
• V2 Premium Kit
  • Premium FCU
  • V2 trigger board
  • 14” wiring harness
  • Buffer tube adapter
• V3 Premium Kit
  • Premium FCU
  • V3 trigger board
  • 12” wiring harness
  • 1/16″ Drill bit
  • M2 0.89×4 Self-Tapping Screw
• M249 Kit
  • Premium M249 FCU
  • M249 wiring harness

FAQ

Can I upgrade my SMP/Inferno/HYDRA to a Gen 2 Inferno?

Yes! We will be offering upgrade kits which include the GEN2 Inferno body along with a filtered grip line. Simply swap the valve and electronics over from the original system, and you are ready to rock!

But wait what about HYDRA?

We have recently released a GEN 2 HYDRA as well. It uses the same technology as the GEN 2 INFERNO and is adapted for offset nozzles.

Does this mean you won’t support Gen1 Inferno/HYDRA?

We do our best to always support our products even if they are discontinued — nothing to worry about. So with the independent nozzle and poppet is the turning more complicated?

Not at all. Because the system still is operated by the single solenoid valve direct-fired design, it features the same ultra simple tuning our SMP products are known for!

Does this mean I can just drop it in and go with no extra tuning to the hop up etc.?

Yes! The system performs extremely well with most stock hop up configurations. The only thing you will want to check is that your alignment is right. While the Gen2 is less sensitive to alignment than single moving part systems, it will still play a role in the overall performance of the gun.

BEAUTIFUL. WE PULLED OFF CONSISTENT MEASURED 320′ SHOTS OUT OF THE 300MM MK18 BARREL. NO ONE COULD BELIEVE WHAT THEY SAW WITH THEIR OWN EYES.

IT’S KNOWN AS THE MOUSE FART RIFLE AT INSANE BECAUSE IT’S THAT QUIET. NO ONE HEARS IT SHOOT UNTIL THEY FEEL IT

CHRIS COSENTINO, PARAFROG AIRSOFT, KNOXVILLE, TN
