T238 Electric Speed Loader Lite Edition

11.1v battery included for the first batch (currently in stock 8/7/2026). While supplies last!

• 5 independent PRESET slots for custom loading counts per magazine

• Supports 2S/3S LiPo batteries with automatic cell count detection

• Support Manual Loading Mode and Fixed Quantity Mode

• Max loading speed: 16 BBs/sec (@12.6V)

• Max thrust: 55N – Easily loads PTS EPM1 250-rd magazines

• Includes 4 nozzle adapters for GBB/AEG/Spring bolt action replica magazines

• Empty Loader alert: Buzzer + OLED warning when speed loader is running out of BBs

• Real-time stats display: Voltage/BB count/loading speed

• Anti-stall protection: Prevents gear damage during stall

• Jam clearing function: Vibrates gears to resolve jams

• Smart safeguards: Low/high voltage cutoff/Overheat protection/Auto-shutdown after prolonged inactivity

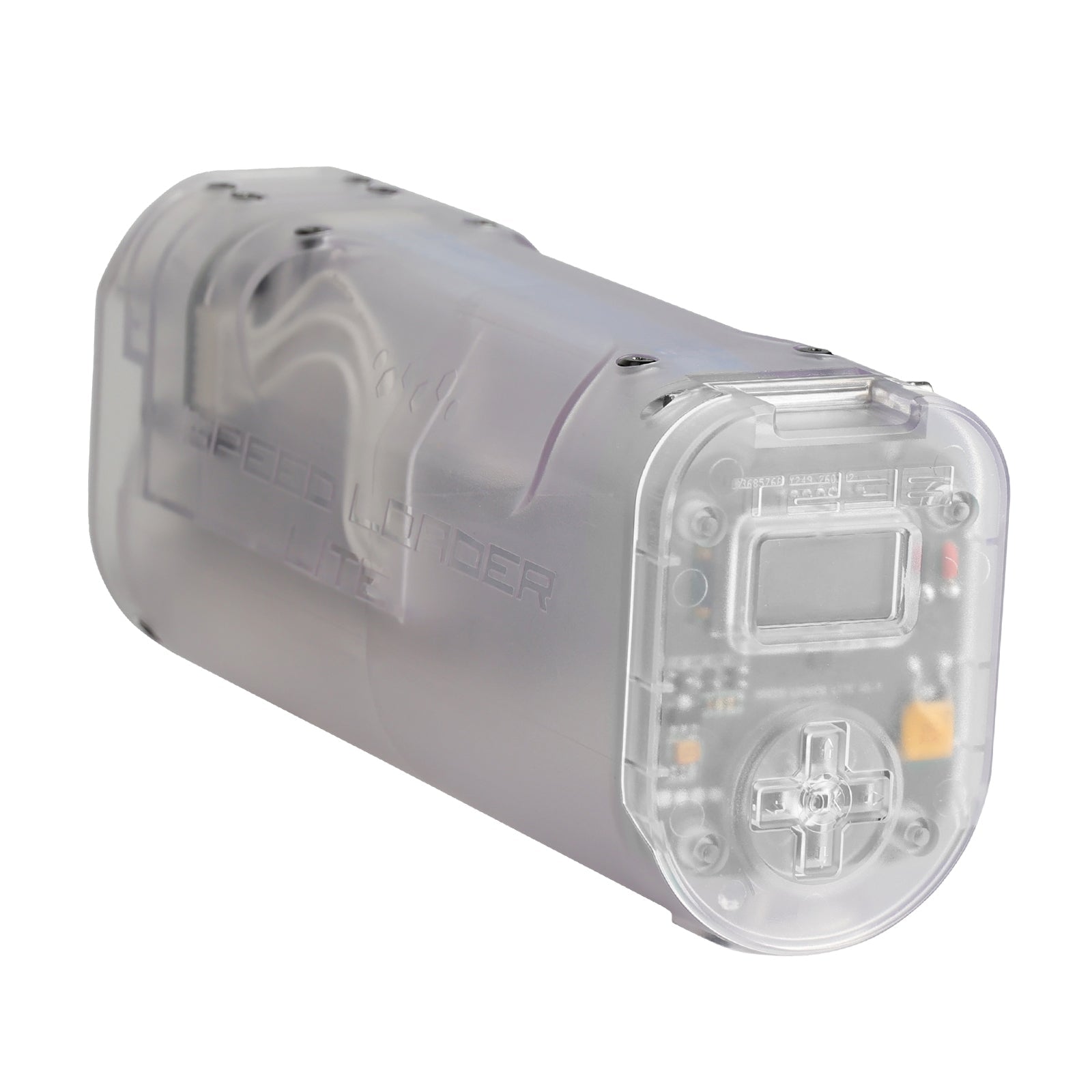

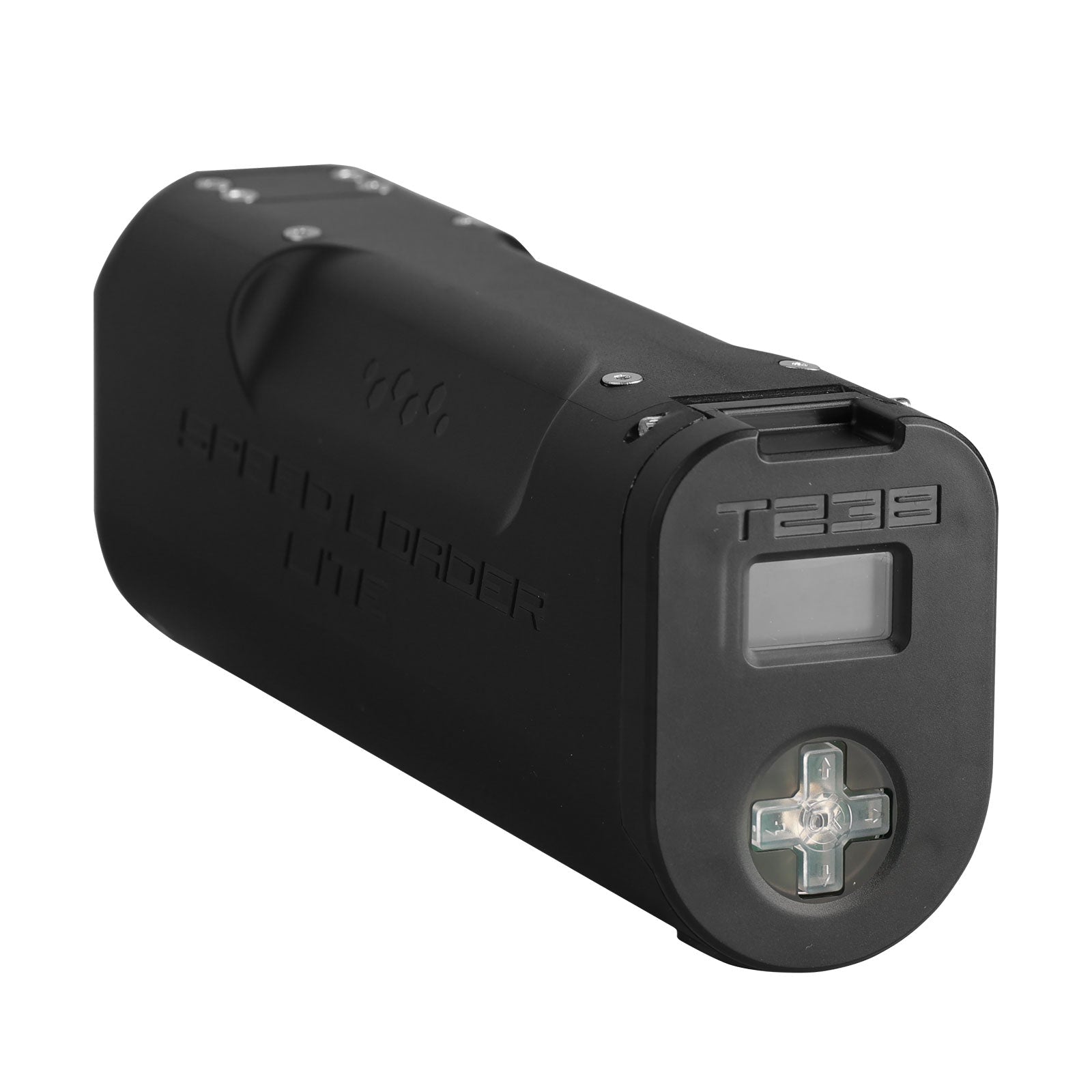

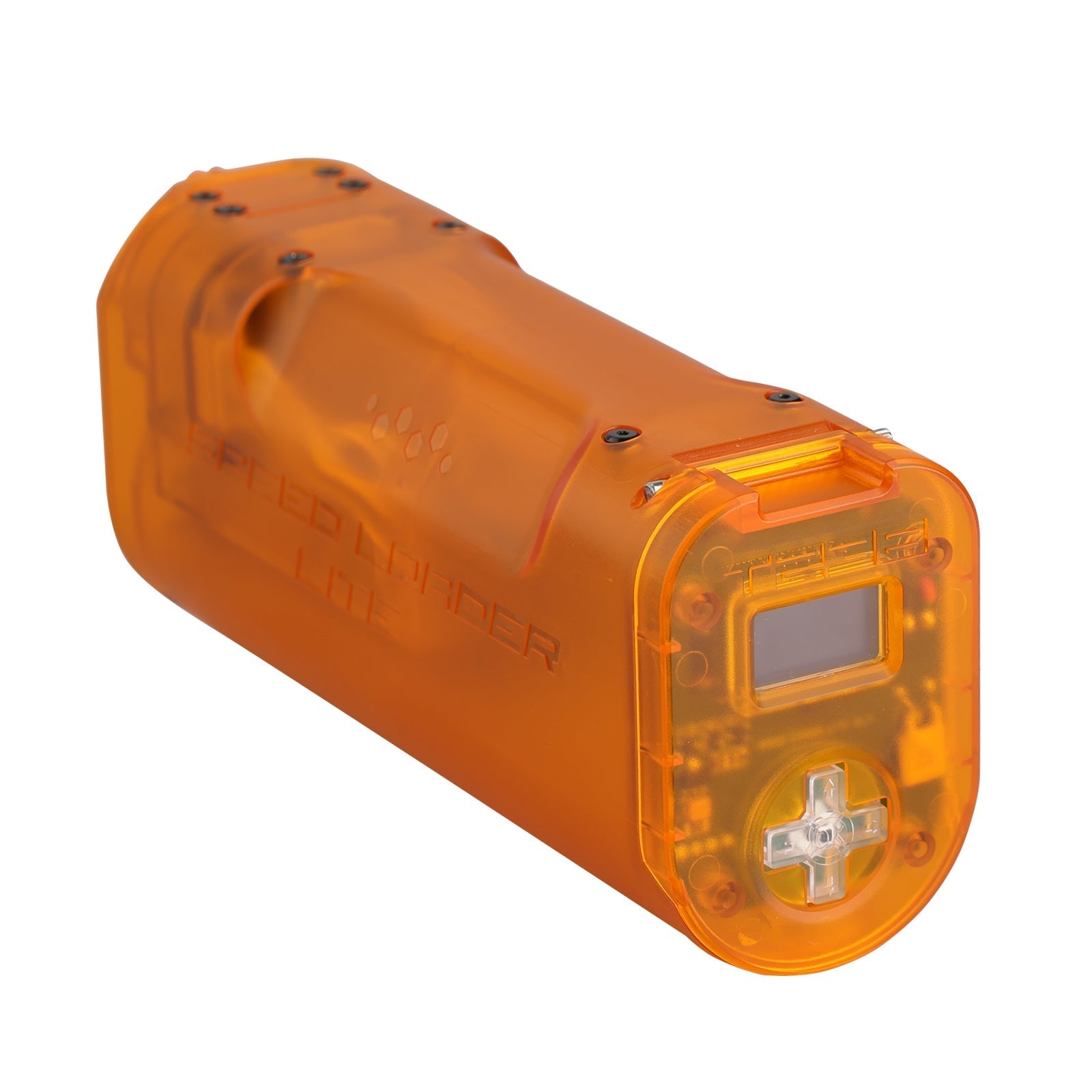

The Lite Edition is a more compact Airsoft electric BB speed loader designed by T238. Its small size allows it to fit easily into a magazine pouch or a radio pouch. The Lite comes standard with a loading wheel made of 304 stainless steel and features 5 independently configurable PRESET slots to accommodate different magazine capacities. Powered by a 3S LiPo battery and high-torque motor, it enables rapid reloading for GBB, AEG, and other standard magazines. It supports both fixed quantity mode and manual loading mode. The 5-way button and OLED screen allow for customizable settings and real-time data display. Built-in jam clearing, anti-stall protection, and low-voltage cutoff ensure stable and efficient operation.

Direct-drive Design

• Direct-drive design with gear-reduced motor provides powerful 17 kg·cm torque
• Battle-proven reliability with full metal drive

Steel Loading Wheel

• Steel loading wheel delivers 55N thrust force - Handles heavy spring mags effortlessly
• Easy to fill PTS EPM1 250-round magazines

Encoder Motor Anti-stall Design

Encoder motor anti-stall design - cuts power to the motor within 0.01

seconds upon detecting a stall condition.

16 BBs/sec Turbo Loading

3S LiPo powered - fills standard Hi-Capa mag in 2 sec

Universal Compatibility

4 adapters for GBB/AEG/Shotgun/Bolt Action

More adapters coming soon...

Different Angles When Loading Different GBB Mags

• Kz.61
• MWS
• Hi-Capa
• GHK

Note that different GBB magazines may require different angles

Dual Operation Modes

1. Preset Mode (Fixed Quantity: 1-999 BBs) stops automatically at set count

• Ideal for: Competition ammo checks

2. Dynamic Manual Mode activates on mag contact, stops when released

• Ideal for: Speed reloads in gameplay

5 Independent PRESET Slots

1. 5 independent PRESET slots - for custom loading counts per magazine
2. OFFSET slot: Compensates for BB loss at the adapter (0-5).

Smart Protection System

1. Auto Jam Recovery: Motor reverses 3x to clear blockages
2. Stall Protection: Triggers "GEAR STALL" alert + buzzer

4-Safeguard Technology

1. Low BB Alert: OLED + buzzer when ammo runs out
2. Voltage Control: Auto-detects 2S/3S batteries, cuts off at unsafe levvels
3. ESC Overheat Protection: Throttles power at 85°C+
4. Auto Sleep: Powers down after 30/60/90/120 minutes of inactivity

Prohibited Actions

• Never insert fingers/hair/clothing into the loading nozzle while the device is running.

• Do not modify motor voltage (may cause gearbox explosion).

• Unauthorized disassembly is strictly prohibited (irreversible damage may occur).

• For 6mm plastic BBS ONLY - Do not load projectiles of other diameters or metal ammunition.

• Children under 14 must use under adult supervision.

Attention

• Reversed battery polarity will permanently damage the mottherboard. (Always verify positive/negative terminals before connecting.)

• Voltage exceeding 13V will permanently damage the motherboard. (Ensure your battery's voltage is compatible before use.)

• For 6mm BBs ONLY - Do not use projectiles of other diameters as they may damage internal components.

Safety Guidelines

Always:

Disconnect power before clearing jams.

Wear ANSI-rated goggles during operation.

Specification Details

• Capacity: About 1100 (6mm BB)
• Loading thrust: About 55N (Easily loads PTS EPM1 250-rd magazines)
• Battery: T-shaped plug, maximum supported size is 102x19x16mm
• Power consumption: Max. 40W



Technical Specifications:

• Dimensions: 76(L)×53(W)x185(H)mm
• Weight: 376g
• Materials: PC/ABS/Steel Loading Wheel
• Loading Rate: 16 BBs/sec @12.6V
• Operating Temp: -20°C~45°C
